उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| शक्ति (डब्ल्यू): | वैकल्पिक | कोर घटक: | पीएलसी, इंजन, गियरबॉक्स, गियर |
|---|---|---|---|
| वीडियो आउटगोइंग-इम्पैक्टेशन: | प्रदान किया | मशीनरी परीक्षण रिपोर्ट: | प्रदान किया |
| गारंटी: | 1 वर्ष | वोल्टेज: | 220V |
| उत्पादन क्षमता: | वैकल्पिक | वजन (किग्रा): | 193 |
| आवेदन: | वेल्डिंग उद्योग | आयाम (l*w*h): | वैकल्पिक |
| वेल्डिंग सामग्री: | धातु | वेल्डिंग विधा: | मिग, टाइग |
| प्रयोग: | वेल्डिंग हैंडलिंग पैलेटिंग लोडिंग अनलोडिंग | मौजूदा: | 500 ए, 350 ए |

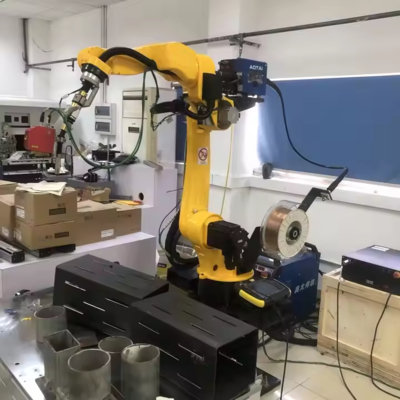

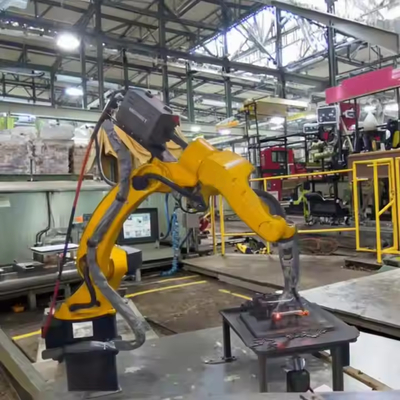

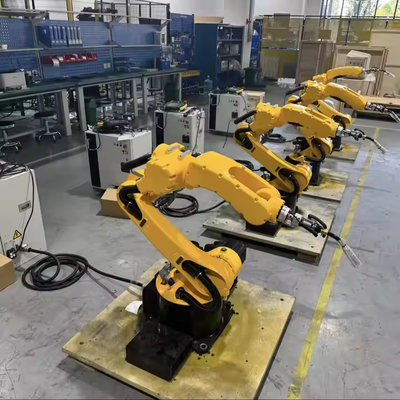

Product Information
Features:
1.The hypoid gear transmission design provides outstanding rigidity, making it perfect for precision tasks like grinding.
2.Hollow diameter up to 57mm allows easy wiring and piping, reducing external interference.
3.With IP67 protection, it's designed to thrive in harsh environments like welding and machining.
Parameters
| Type | AIR10 -1700-HW | |
| Axes | 6 | |
| Payload | 10kg | |
| Manipulator | Weight | 193kg |
| Reach | 1708mm | |
| Positioning accuracy | Position repeatability | ±0.06mm |
| Ingress Protection | IP54 (Wrist:IP67) | |
| Mounting | Floor/ wall/ ceiling | |
| Working range | Axis 1 rotation | -170°/+170° |
| Axis 2 arm | -85°/+150° | |
| Axis 3 arm | -100°/+170° | |
| Axis 4 wrist | -155°/+155° | |
| Axis 5 bend | -120°/+120° | |
| Axis 6 turn | -360°/+360° | |
| Rotation rate | Axis 1 rotation | 210°/s |
| Axis 2 arm | 170°/s | |
| Axis 3 arm | 220°/s | |
| Axis 4 wrist | 430°/s | |
| Axis 5 bend | 450°/s | |
| Axis 6 turn | 720°/s | |

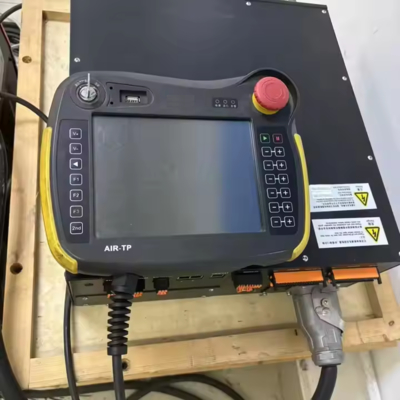

| Controllers | inCube20/ARC5-12 | |
| Mounting conditions | Ambient temperature: 0~45℃ Humidity: not more than 95% at constant temperature without condensation. Allow able altitude: not more than 1000m above sealevel. No corrosive, flammable or explosive gases. |
|
| Welding Model | NBC35ORL | NBC50ORP |
| Rated Voltage/Hz | 3Phase3980±10%/50 | |
| Rated Capacity KVA | 14 | 24 |
| Rated Current | 21 | 38 |
| Rated Outputvolatge | 31.5 | 39 |
| Rated Load Keep Ratio | 660 | 100 |
| Output Unload Valtage | 96 | 106 |
| OutputCurrent/Voltage Range | 60/17--350/31.5 | 60/17-500/39 |
| Carbon Steel/Stainless Steel Wire Diameter MM |
0.8 1.0 1.2 | 0.8 1.0 1.2 1.6 |
| Wire Feeding Type | Feed Type | |
| Air(L/min) | 15-20 | |
| Cooling Function | Air Cooling | Water Cooling |
| Protection | IP23 | |
Company Profile
XDEM has been established for over a decade, focusing on industrial robots, core components, and industry automation solutions. The company has always been committed to the independent research and development of robotic technologies and breakthroughs in high-end equipment technology bottlenecks. At the same time, XDEM is building a forward-looking industrial layout centered on embodied intelligence and large-scale robotic behavior models within the realm of AI+robotics.
